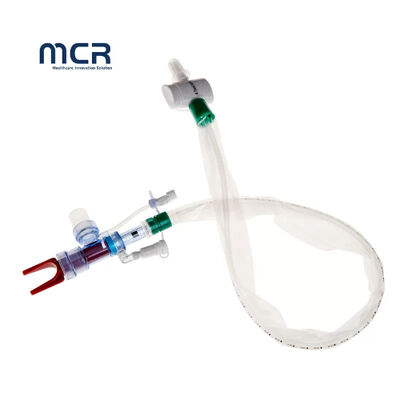

Closed Suction Catheter Tracheotomy Tube With Automatic Flushing 72H

Closed Suction Catheter Endotracheal / Tracheotomy Tube Automatic Flushing 72H

-Double Swivel Elbow

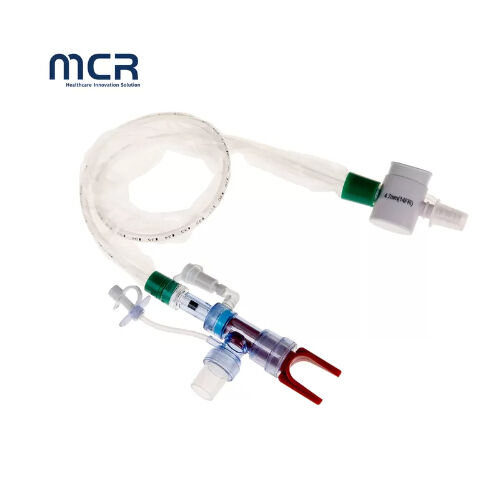

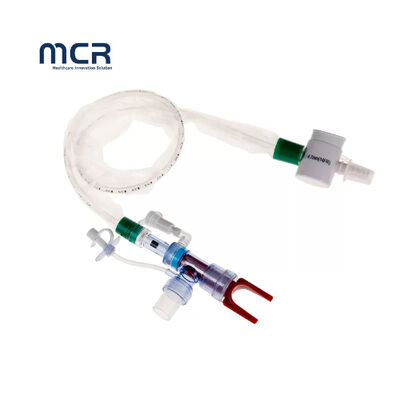

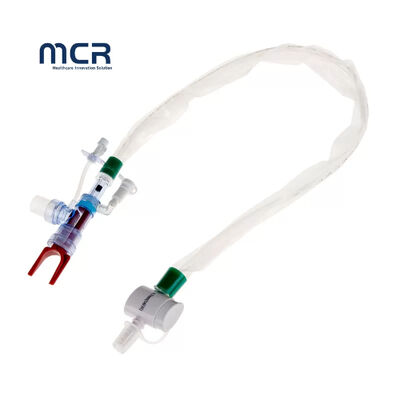

Single Use Closed Suction Catheter L Type Auto-Flush 72H

Designed with a protective sleeve to isolate germs and help caregivers avoid cross-infection. Simultaneous ventilation design allows patient comfort during suctioning without stopping air ventilation.

Advanced Cleaning Technology

Automatic Flushing Closed Suction System retracts within a unique isolated turbulent cleaning chamber. The turbulent cleansing action results in an 89% cleaner catheter tip compared to standard closed suction systems, potentially reducing the risk of VAE and VAP in ventilated patients.

Product Features

Continuous Breathing: Simultaneous ventilation capability

Soft Blue Suction Tip: Reduces patient damage during suctioning and facilitates easier irrigational cleaning

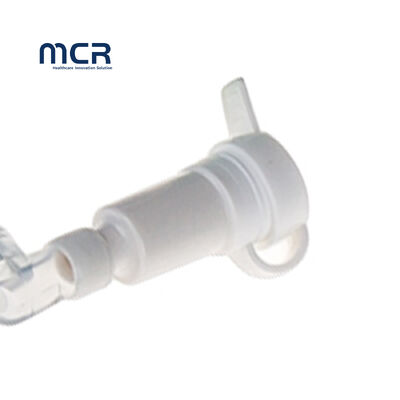

Disconnecting Wedge: Equipped with both disconnecting and clipping functions

For Endotracheal Tube and Tracheostomy Tube: Compatible with various tube lengths

Prevent Cross Infection: Protective sleeve isolates bacteria to protect caregivers

Product Specifications

Instructions for Use

Setup Procedure

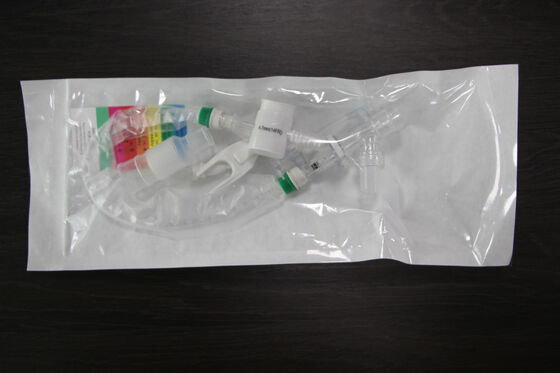

1. Inspect product before use. Do not use if package is not intact

    2. Open sealed package and remove product

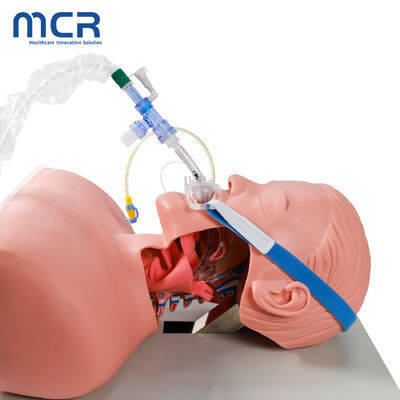

    3. Connect Endotracheal Tube/Tracheostomy Tube to Revolvable adapter

    4. Connect ventilator tube to Revolvable Ventilator Connector

    5. Attach date label to color ring

    6. Before suctioning, ensure MDI Port and Irrigation Port caps are closed

    7. Before suctioning: Ensure on-off valve is in open position by sliding to allow catheter entry

Suctioning Procedure

Caution: Always use recommended vacuum levels and consider length of suctioning time

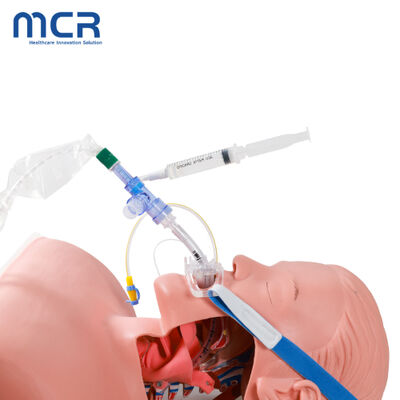

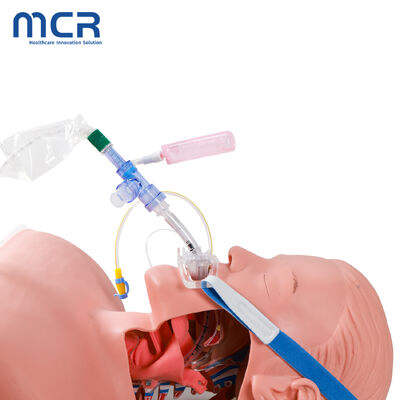

1. Grip three-way adaptor with one hand and feed suction catheter into tube to required depth

    2. Depth markers are visible through protective cover for guidance

    3. Once catheter is at desired position/depth, depress vacuum control valve to apply suction

    4. Remove suction catheter until protective sleeve is straight

    5. Repeat steps 1-3 as necessary

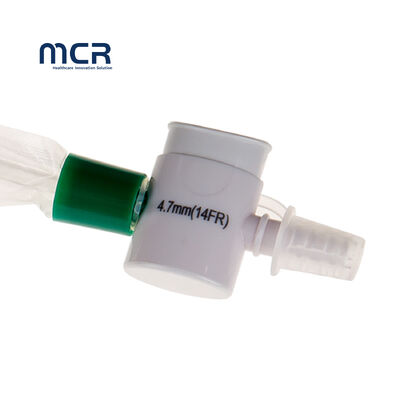

Product Images
