| Nome da marca: | MCR / ODM |
| Número do modelo: | MC-07240- MC-07253 |
| MOQ: | 1.000 PCes |
| Condições de pagamento: | L/C, T/T, Western Union |
| Capacidade de abastecimento: | 480,000PCS/Mês |

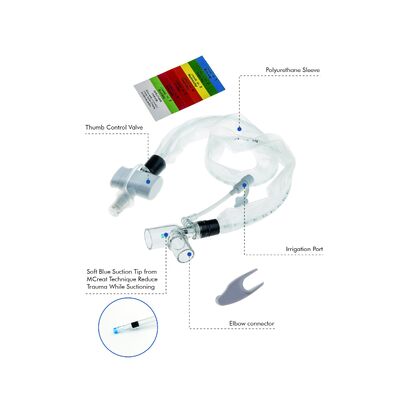

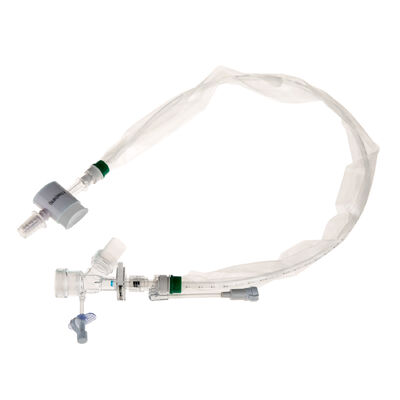

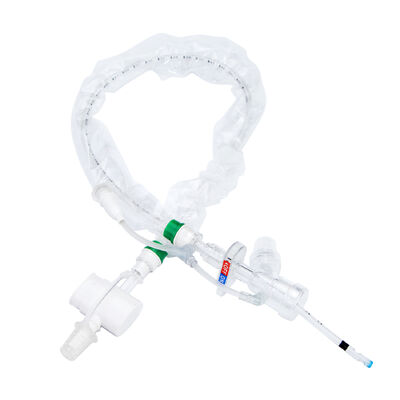

Disposable Closed Suction System Tracheostomy/ Endotracheal Tube
Y Type, Auto-Flushing, 72H, Single Lumen, With Double Swivel Elbow & Push Switch & Luer Lock
Highlights
- Prevent Cross Infection
Designed with a protective sleeve to isolate the bacteria inside and help caregivers avoid cross-inflection.
- Easy operation, time saving, safe
Designed with Automatic Isolation Valve
- Reducing the risk of VAP foventilated patients, can be used for 72H
Designed with turbulent cleaning chamber, push switch and luer lock, which create cleaning action, rusulting in a cleaner catheter
- Continuous Breathing
Simultaneously ventilation
- Soft Blue Suction Tip
This design reduces damage to the patient while suctioning.
After returning the catheter, the tip of the tube is easier for irrigational cleaning.
- Disconnecting Wedge
Designed to equip the wedge with both disconnecting and clipping functions
- For Endotracheal Tube and Tracheostomy Tube
Designed for endotracheal and tracheostomy tube using
Tubes with different length are available
![]()
![]()
Specifications
| Product Code | Size | Colour Code | Tube OD (mm) | Length of Tube (mm) |
| MC-07240 | Adult/72H/Endotracheal | Black | 10Fr(3.35mm) | 600mm |
| MC-07241 | Adult/72H/Endotracheal | White | 12Fr(4.05mm) | 600mm |
| MC-07242 | Adult/72H/Endotracheal | Green | 14Fr(4.75mm) | 600mm |
| MC-07243 | Adult/72H/Endotracheal | Orange | 16Fr(5.45mm) | 600mm |
| MC-07250 | Adult/72H/Tracheostomy | Black | 10Fr(3.35mm) | 300mm |
| MC-07251 | Adult/72H/Tracheostomy | White | 12Fr(4.05mm) | 300mm |
| MC-07252 | Adult/72H/Tracheostomy | Green | 14Fr(4.75mm) | 300mm |
| MC-07253 | Adult/72H/Tracheostomy | Orange | 16Fr(5.45mm) | 300mm |
We can produce the closed suction catheter according to customers' requirements.
![]()
![]()
![]()
![]()
